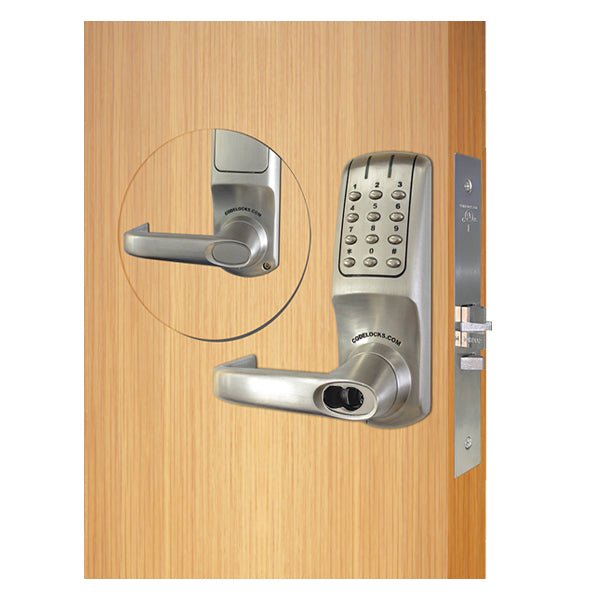

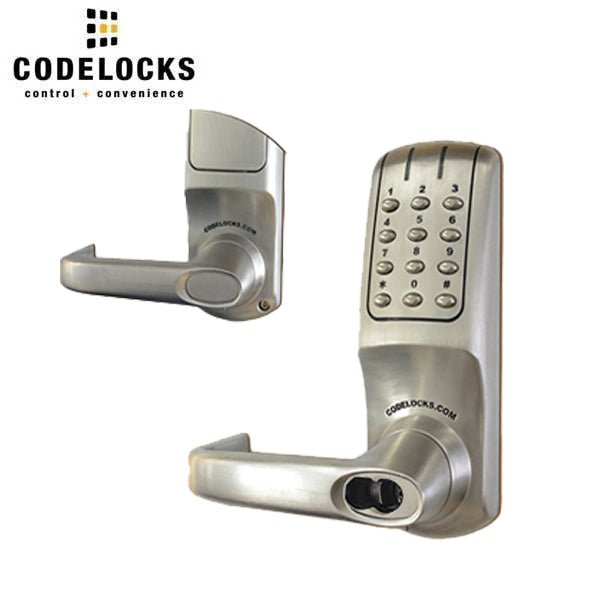

CodeLocks CL5250 Electronic Smart Lock
The CodeLocks CL5250 is a heavy-duty electronic mortise lock designed for reliable access control in residential and commercial environments. Its easy-to-use keypad provides convenient keyless entry while supporting multiple user codes.
With a durable Grade 2 construction, brushed steel finish, and long battery life, the CL5250 is a practical choice for offices, schools, warehouses, hotels, care facilities, and homes.
Key Features
- Grade 2 electronic mortise lock
- 3/4″ backset
- Standard cylinder preparation
- Supports up to 80 user codes
- Supports up to 10 one-time user codes
- Brushed steel finish
- PVD low-maintenance finish
- Over 200,000 operations using 4 AA batteries
- Tamper timeout and low-battery warning
- Remote release connection
- Alarm release included
- Code-free entry option
- Reversible lever handle for left- or right-handed doors
- Suitable for residential and commercial applications
Ideal For
- Homes
- Offices
- Schools
- Warehouses
- Hotels
- Hospitals
- Care facilities
- Nurseries
- Commercial buildings
Specifications
| Brand | Codelocks |
| Buttons | 3 x 4 |
| Code Change Method | Keypad (On Door) |
| Codes | User Codes 4, 5 or 6 digits long |
| Door Thickness | 1 3⁄8″ – 2 3⁄8″ (35mm – 60mm) |
| Finish | Brushed Steel |
| Handed | Non-Handed – Locks will fit doors hung on the left or right |
| Keypad | 12 Individual stainless steel buttons |
| Latch Type | Mortise Latch |
| Lock Material | Zinc Alloy |
| Low Battery Warning | Red LED will flash on opening to indicate low battery |
| Memory | Stores up to 80 User Codes |
| Operations | Up to 200,000 per set of 8 x AAA batteries |
| Orientation | Vertical |
| Power | 4x AA |
| Spindle | Two part 5⁄16″ (8mm) spring loaded spindle |
| Suitable For | Internal, External |
| User Types | Code |
| Fire Rated | 3-hour UL 10C |
| Certifications | Grade 2 ANSI A156.2 / A156.25, UL/ULC |
